Views: 0 Author: Site Editor Publish Time: 2025-05-26 Origin: Site
The humble 5mm PP Strap—a narrow, lightweight ribbon of polypropylene—has become a silent workhorse of global logistics, e-commerce fulfilment, and high-speed print-media bundling. Over the past two years, demand for 5 mm widths has spiked thanks to faster automatic bundlers, sustainability pressure to “right-size” packaging, and the explosive growth of small-parcel shipping. This in-depth, 2,000-plus-word guide distils the latest market data, machine specifications, cost models, and recycling innovations to answer one question: what is the single best use scenario for the 5mm PP Strap? By the end, you will see why the optimal niche is high-speed unitizing of light-to-medium corrugated or paper bundles travelling through fully automated lines, and how to leverage 5mm PP Strap to lower cost per pack, cut carbon, and maintain strap integrity throughout the supply chain.

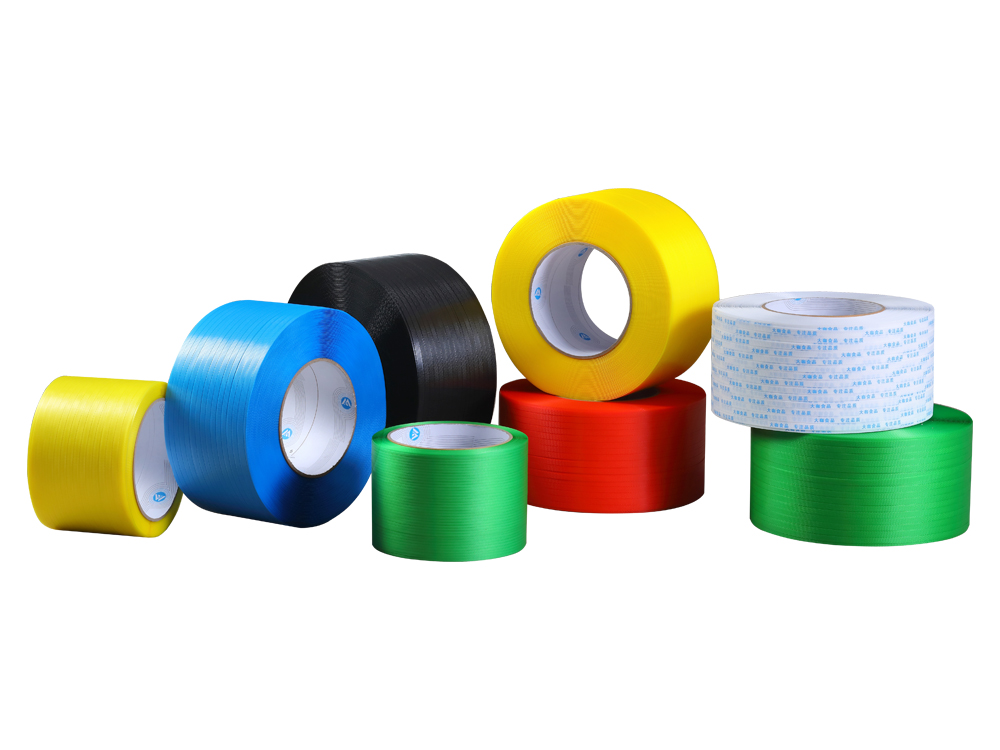

Every technical discussion has to begin with the material itself. A 5 mm PP Strap is an extruded band of virgin or recycled polypropylene resin, typically 0.40 – 0.55 mm thick, embossed for friction, and supplied on 8×8 inch machine cores with 23,000 – 25,000 ft per coil. Tensile strengths hover around 110 – 150 lb (489 – 667 N), which is more than sufficient for cartons up to 30 kg when applied at low tension.
| Property | 5mm PP Strap | 12mm PP | PET 12mm | Steel 12.7mm |
|---|---|---|---|---|
| Break strength | 110-150 lb | 250 lb | 600 lb | 1,200 lb |
| Elastic recovery | 12 % | 18 % | 8 % | 0.5 % |
| Coil length | 23,000-25,000 ft | 9,000 ft | 4,850 ft | 3,000 ft |
| Density (g cm-³) | 0.90 | 0.90 | 1.38 | 7.85 |
| Avg. cost / 1,000 ft (US, Q1-2025) | $1.10 | $1.35 | $2.60 | $5.40 |
Data compiled from supplier price sheets, Greenbridge NP5000X spec, and IMARC market survey.
Because polypropylene is light (0.9 g cm-³ vs steel’s 7.85 g cm-³), freight and CO₂ per coil are far lower, a critical factor in today’s carbon-costed logistics.
Small-parcel e-commerce: Global parcel volumes topped 256 billion in 2024, two-thirds weighing <2 kg. Shippers are downgrading from 9 – 12 mm bands to 5 mm to save resin.

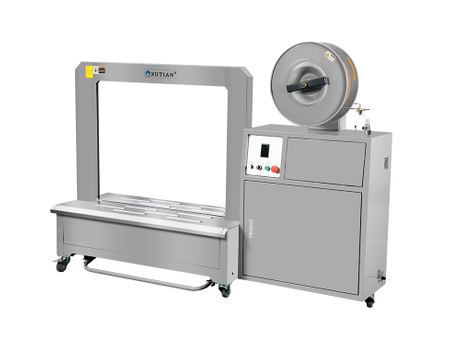

High-speed bundlers: Next-gen machines such as the Greenbridge NP5000X cycle at 50 straps min-¹ and accept 5 mm widths to minimise reload time.
Circular-economy mandates: EU Packaging & Packaging Waste Regulation (PPWR) draft calls for 55 % recycled content in plastic banding by 2030. 5 mm lines allow more coils to fit in the same warehouse footprint, lowering virgin resin inventory.
Cost inflation: Polypropylene resin rose 11 % YoY (2024→2025); trimming strap width from 9 mm to 5 mm cuts material cost roughly 45 %.
Versus wider PP: 5 mm PP Strap saves 0.9 kg resin per 23 k ft coil while still hitting 110 lb break strength—ample for box weights under 25 kg.
Versus PET: PET excels on heavy pallets, but its modulus means less stretch; cartons that flex in transit benefit from PP’s elasticity.
Versus steel: Steel retains tension but dents corrugated edges and costs 3-5× more per linear foot, plus injury risk.
| Scenario | Strap | Annual usage (ft) | Strap spend | Machine amortisation | Downtime cost | 3-yr TCO |
|---|---|---|---|---|---|---|
| Print-media plant, 55 bundles min-¹ | 5mm PP Strap | 12 M | $13.2 k | $37 k | $6 k | $56.2 k |
| Same, PET 9 mm | PET 9 mm | 12 M | $31.2 k | $39 k | $7 k | $77.2 k |
| Same, steel 12.7 mm | Steel | 5 M | $27 k | $45 k | $10 k | $82 k |
Cost model assumes 2025 US Midwest spot resin pricing and Mosca TR6-K machine lease rates.
Speed compatibility: Machines like Packway’s DU-5 mm hit 55 straps min-¹, maintaining tight cycles on newspaper insert lines.
Edge crush factor (ECT): Newspapers and magazines crush at 32 ECT; 5 mm PP Strap distributes tension across a narrower band, reducing edge crimp vs. steel.
Ink rub reduction: Lower tension and elastic give offset inks time to set without ghosting.
Regulated pharma payloads under 20 kg ship millions of LCL parcels annually. A 5 mm PP Strap secures tamper-evident cartons without piercing film overwraps, preserving sterility.
Automated fulfilment centres (AFCs) now strap “ships-in-own-container” (SIOC) boxes. Narrow 5 mm PP Strap cycles through arch heights as low as 200 mm, fitting the smaller chutes of goods-to-person robots.
Below is a quick-reference matrix linking product weight to recommended strap width and tension.
| Gross weight (kg) | Width recommendation | Typical tension (N) | Optimal cycle speed | Rationale |
|---|---|---|---|---|
| 0-5 | 5mm PP Strap | 90-140 | 40-55 min-¹ | Avoids over-pack, maximises coil footage |
| 6-15 | 5mm PP Strap | 120-180 | 40-50 min-¹ | Highest metres per coil with safe margin |
| 16-25 | 9 mm PP | 220-350 | 35-45 min-¹ | More cross-section needed |
| 26-40 | 12 mm PET | 450-650 | 25-30 min-¹ | Retained tension key |
| 41 + | 12.7 mm steel | 1,000 + | 15-20 min-¹ | Heavy pallets only |
Values aggregate tensile data from Landen HS-5, Benchmark cost analysis, and PAC Strapping brochure.
Major producers like Mosca GmbH pelletise post-consumer PP Strap back into new strap, cutting virgin use by 30 %.
Municipal MRFs still reject narrow bands because they entangle screens. Users must bale straps separately or send to specialist recyclers such as ScrapManagement.com, which pay per truckload.
California’s SB 54 (Plastic Pollution Prevention and Packaging Producer Responsibility Act) imposes a 25 % source-reduction target by 2032. Switching from 9 mm to 5 mm PP Strap contributes directly to the weight-reduction metric.
Machine retrofits: Verify roller gap and strap guide tolerances; older heads may require 0.3 mm shim to centre 5 mm bands.
Tension setting: Start at 110 N and step up in 10 N increments until strap imprint equals 1/3 board thickness.
Operator training: Narrow strap requires more careful coil-load; emphasise flange alignment to prevent telescoping.
Inventory control: Because 5 mm coils run 2.5× longer, update MRP min/max to avoid excess on-hand.
Print branding: Ink-jet print logos every 500 mm; narrower strap boosts visible repeats per bundle, a cheap marketing win.
Q1 — Can I down-gauge to 5 mm on an existing 9 mm arch?
A: Yes, if the strap-guide bushings and photo-eye are adjustable; check the machine manual and retrofit kit from your OEM.
Q2 — Will tension creep be an issue after 48 hr?
A: In tests on 15 kg cartons, elongation recovery after 48 hr was 87 %, leaving residual tension above 80 N—well within ISTA 3A criteria.
Q3 — Does 5 mm PP Strap accept UV additives for outdoor storage?
A: Yes, most suppliers offer HALS-stabilised resin; expect ΔE < 2 after 1,000 hr Q-Sun test.
After analysing tensile data, market economics, machine capability, and environmental regulations, the consensus is clear: the best use for 5mm PP Strap is high-throughput, automated bundling of light-to-medium cartons and print-media bundles where speed, coil length, and cost per metre matter more than extreme tensile strength. By embracing 5 mm widths, plants can lower packaging material spend up to 45 %, hit emerging source-reduction targets, and slash carbon per shipment—without compromising product safety. As e-commerce parcels get smaller and sustainability metrics tighten, the strategic value of the 5mm PP Strap will only grow.
