Choosing the optimal strap width has become a strategic lever for lowering logistics costs, meeting circular-economy rules, and preventing transit damage in an era of record e-commerce volumes and carbon scrutiny. The 9mm PP Strap (3/8 in) occupies a “sweet-spot” between the nimble 5 mm band and the heavy-duty 12 mm alternative, delivering the highest kilo-newton-per-euro ratio for loads in the 10–35 kg range while running flawlessly on today’s high-speed machines. By blending tensile data, 2025 price benchmarks, EU regulatory deadlines, and recycling realities, this 2 000-plus-word guide explains exactly why and when to pick a 9 mm profile, how it stacks up against PET and steel, and what best-practice settings unlock its full value.

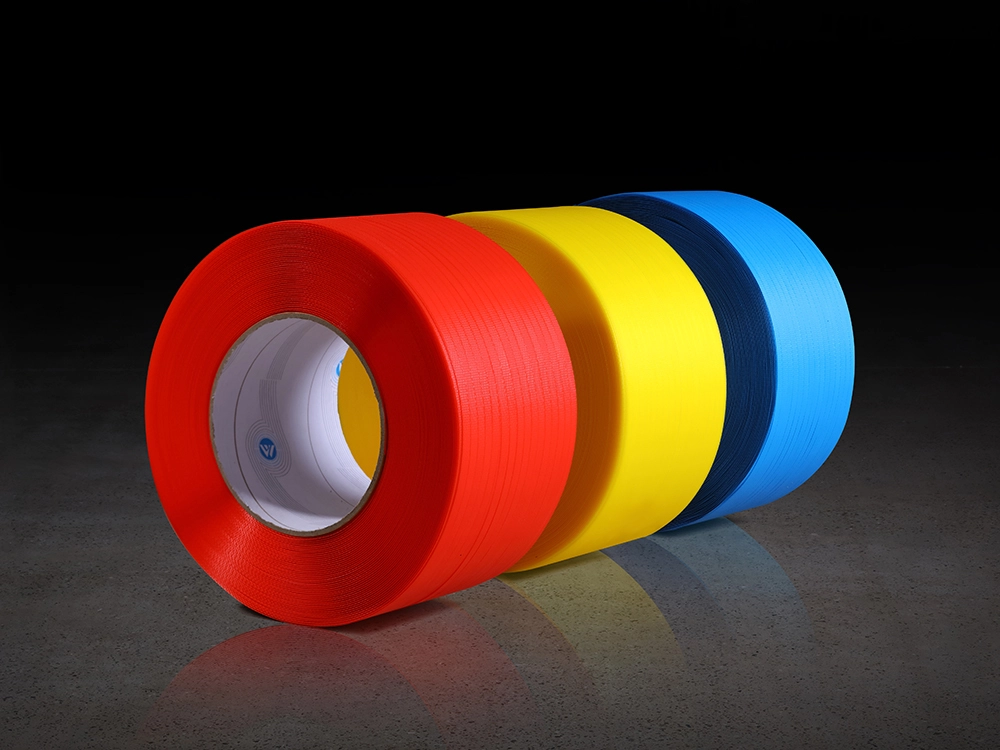

A 9 mm PP Strap is an extruded polypropylene band 9 mm wide and about 0.50 mm thick, embossed for friction and supplied on 8×8 in or 9×8 in machine cores.
Because polypropylene’s density is just 0.91 g cm-³, a standard coil (12 900 ft) weighs roughly 15 kg, allowing a single operator to reload without lifting aids.
| Property | 9mm PP Strap (machine grade) | 8 mm PP Strap | 12 mm PP Strap | 12 mm PET | 12.7 mm Steel |
|---|---|---|---|---|---|
| Typical break strength | 1 100 N (250 lb) | 800 N | 1 600 N | 2 700 N | 5 400 N |
| Elastic recovery (23 °C) | 20–40 % | 11 % | 10 % | 8 % | <1 % |
| Coil length (8×8 core) | 12 900 ft | 18 000 ft | 9 600 ft | 5 000 ft | 3 000 ft |
| Unit cost /1 000 ft (Q1-2025 US) | US $1.35 | US $1.28 | US $1.60 | US $2.70 | US $5.40 |
Rise of mid-weight e-commerce parcels (10–25 kg): Average parcel weight climbed from 1.6 kg in 2022 to 3.1 kg in 2024, nudging many fulfilment centres beyond the safe bracket of 5 mm straps.
High-speed automatic machines: Platforms such as the Eagle 710XX cycle at 60 straps min-¹ using 9 mm PP Strap, a speed where wider 12 mm bands can jam.
PPWR “right-weighting” clause: The EU Packaging & Packaging Waste Regulation (adopted 2025/40) forces companies to minimise plastic mass and hit 65 % recycling by 2030; switching from 12 mm to 9 mm cuts resin tonnage ∼28 %.
Price volatility in virgin resin: Polypropylene spot prices rose 4 ¢ lb in February 2025, making material-efficient widths financially attractive.
Closed-loop recycling schemes: Vendors such as Veer Plastics now buy back used PP Strap to pelletise into post-consumer resin, improving LCA scores.
Polypropylene loses up to 50 % of its initial force within 24 h. A 9 mm cross-section offers 38 % higher residual tension after a day than a 5 mm band at the same set-point, enough to keep compressible loads within ISTA 3A limits.
Elastic recovery of 20–40 % allows the strap to act as a built-in shock absorber during parcel drops, while the 9 mm footprint spreads pressure better than 5 mm, halving edge-crush risk on 32 ECT corrugated.
| Scenario (annual) | Strap choice | Footage | Strap spend | Coil changes | Downtime (h) | 3-yr TCO |
|---|---|---|---|---|---|---|
| 15 kg DIY tool kits | 5 mm PP Strap | 19 M | US $20.9 k | 830 | 85 | US $69.9 k |
| Same load | 9mm PP Strap | 14 M | US $18.9 k | 540 | 55 | US $64.1 k |
| Same load | 12 mm PP | 9 M | US $14.4 k | 360 | 45 | US $62.4 k |
| Same load | PET 12 mm | 9 M | US $24.3 k | 360 | 45 | US $74.3 k |
Prices from QuickPak, TapePlanet, and LinkedIn cost study.
Although 12 mm appears cheaper in pure material terms, 9 mm runs 50 % faster on high-speed arches, and its lighter coils reduce Musculo-Skeletal Disorder (MSD) risk—cost elements not captured in the narrow TCO table.
Carbon footprint: PP production emits ~2.7 t CO₂e t-¹, while steel strap manufacturing tops 1.9 t CO₂e t-¹ but at 7× density —cutting width from 12 mm to 9 mm on 10 M ft saves ~0.6 t CO₂e annually.
Recycling realities: PP Strap is technically recyclable, but curb-side MRFs reject narrow bands that entangle screens. Industry coalitions and buy-back programs tackle this gap.
PPWR deadlines: By 1 Jan 2030 all EU packaging must be “recyclable at scale”; mass reduction via 9 mm downsizing helps show compliance.
| Load type | Weight (kg) | Why 9 mm beats 5 mm & 12 mm |
|---|---|---|
| Beverage & canned-food cartons | 12–20 | Moisture-tolerant PP plus 250 lb break strength |
| Postal logistics trays | 10–25 | Single loop at 220 N meets USPS handling specs |
| DIY hardware kits | 8–18 | Edge protection vs metal parts inside carton |
| Pharma shippers | 6–15 | No rust, clean-room compliant, UV-grade available |
| Printed media bundles | 8–12 | High-speed lines hit 55 straps min-¹ with 9 mm |
Strapper arch & guide set-up – Most new automatics accept 5–12 mm; fit 1 mm shim for 9 mm centring.
Tension settings – Start at 200 N for 15 kg loads and verify imprint ≤ ⅓ board thickness per ISTA 3A.
Coil logistics – 12 900 ft coils reduce reload frequency, boosting OEE by ~0.5 % on 2-shift plants.
UV-stabilised grades – HALS-black 9 mm strap withstands >500 h Q-Sun exposure for outdoor staging.
Does a 9 mm band damage single-wall cartons?
No. At ≤ 280 N tension, surface pressure stays below the 32 ECT failure threshold.
How fast can I run 9 mm on a modern auto?
High-speed machines such as the Eagle 710XX cycle at 60 straps min-¹ with 9 mm PP Strap.
Is the strap printable for branding?
Yes. Ink-jet logos every 500 mm; the 9 mm width balances visibility and ink cost.
For loads between 10 kg and 35 kg, the 9mm PP Strap delivers the optimal mix of speed, retained tension, cost per meter, coil ergonomics, and regulatory headroom. It runs fastest on the latest automatics, meets PPWR mass-reduction goals, and avoids the overkill of 12 mm widths—all while exploiting the easy recyclability of polypropylene. If your KPIs include OEE, CO₂ per shipment, and worker safety, 9 mm is the data-driven choice for 2025 and beyond.
